Healing Waters – by Mark Davis
Location: Driveway of Ann and Robert H. Lurie Children’s Hospital
.
.

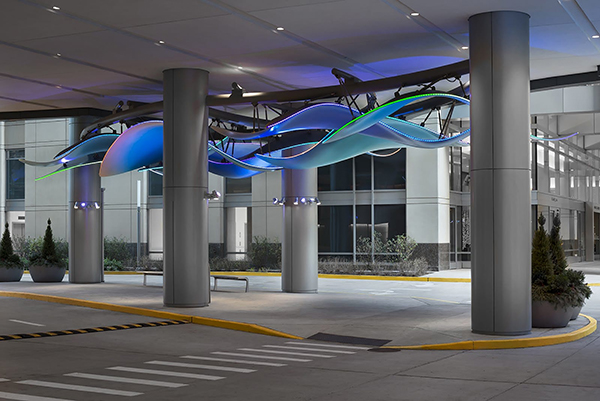

The Mark Davis piece, entitled “Healing Waters,” is a suspended sculpture, situated above the driveway entrance to Ann & Robert H. Lurie Children’s Hospital of Chicago that represents the flowing movement of water. Comprised of painted blue and green steel and carbon fiber molded plates with a rim of LED lights, these virtual waves are meant to evoke the calming effect of water, and share its positive energy with all who enter the hospital.
.

Healing Waters – by Mark Davis
.

Mark Davis with the Vector team: from left.. Nathan Overley, Derick Malkemus, Steve Mueller, Barry Hehemann and sculptor Mark Davis.
.
.
“Healing Waters” – by Mark Davis .. &.. Vector Fabricating
Vector fabricating has been involved in the different stages of fabrication and installation of the sculpture,
especially the steel beams.
.
.
Oct 19, 2012
Installation complete: All nine wave shapes are now installed. The edge protection and all tape removed; paint touched-up (only 3 small spots required touch-up); nitrogen blown into the lighting cavity as per instructions Eric/ADM; and all surfaces hand cleaned with clothes and cleanser supplied by ADM.
.
- Installation of Healing Waters
- Installation of Healing Waters
- Installation of Healing Waters
.
October 18, 2012
Installation of the different parts of the sculpture Healing Waters.
.
- Installation of Healing Waters
- Installation of Healing Waters
- Installation of Healing Waters
- Installation of Healing Waters
- Installation of Healing Waters
- Installation of Healing Waters
.
August 2012
Installation of Steel frame
.
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
- Installation of steel pipes
.
August 2012
.
- Connection Lugs
- Hanger with Hardware
- Pipe Hangers
- Shipping to Blaster
- Shipping to Blaster
.
July 2012
.
- Finished-10-inch-Pipe-Beams
- Jig-for-Pipe-Hangers-on-5-inch-pipe
- Drilling-Wire-Mgmnt-Holes
.
June 2012
structural steel pipe beams being fabricated in Vector’s outside yard.
.
- structural steel pipe beams
- structural steel pipe beams
- structural steel pipe beams
- structural steel pipe beams
- structural steel pipe beams
- structural steel pipe beams
.
June 2012
The progress photos of the fabrication of Healing Waters by Mark Davis, at Vector Fabricating.
.
- Shop Drawing
- 2 inch steel cap plates
- Lay-out Tools
- Rolled Pipes prior to fabrication
- Drop from Hanger Bracket parts
- Column connection plates 1
- Column connection plates 2
- Saddle Box on Pipe Beam (2)
- Lay-out of Pipe Beam
.
February 2012: Survey of Site
In these photos Power has had the column cladding removed and Vectors Iron workers are removing the fire proofing in order to allow DLZ Industrial to scan three dimensionally the entire Traffic Island including the 4 columns that the sculpture will be attached to.
.
- Survey Feb 24, 2012
- Survey Feb 24, 2012
- Survey Feb 24, 2012
- Survey Feb 24, 2012
- Survey Feb 24, 2012
- Survey Feb 24, 2012
- Survey Feb 24, 2012
- Survey Feb 24, 2012
- Survey Feb 24, 2012
